ACADEMY

Low Glare Surface Module

  • Suitable for offices and schools where a low glare solution is required
  • Suitable for replacement of linear fluorescent modules
  • Available in standard or high outputs in 1200mm, 1500mm and 1800mm models
  • Tamlite I-Tech diffuser designed for low glare reduction to BS EN-12464 compliance
  • Easy to fit construction with separate spine fixing
  • Gear options including DALI and emergency available
  • CRI: Ra>80
  • Extruded aluminium body finished in white (RAL 9010)
  • Microprism PMMA diffuser
  • Polycarbonate end caps
  • Tri-colour easy switch technology from cool white (5000K) or neutral white (4000K) or warm white (3000K)
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Product Leaflet
Instruction leaflet

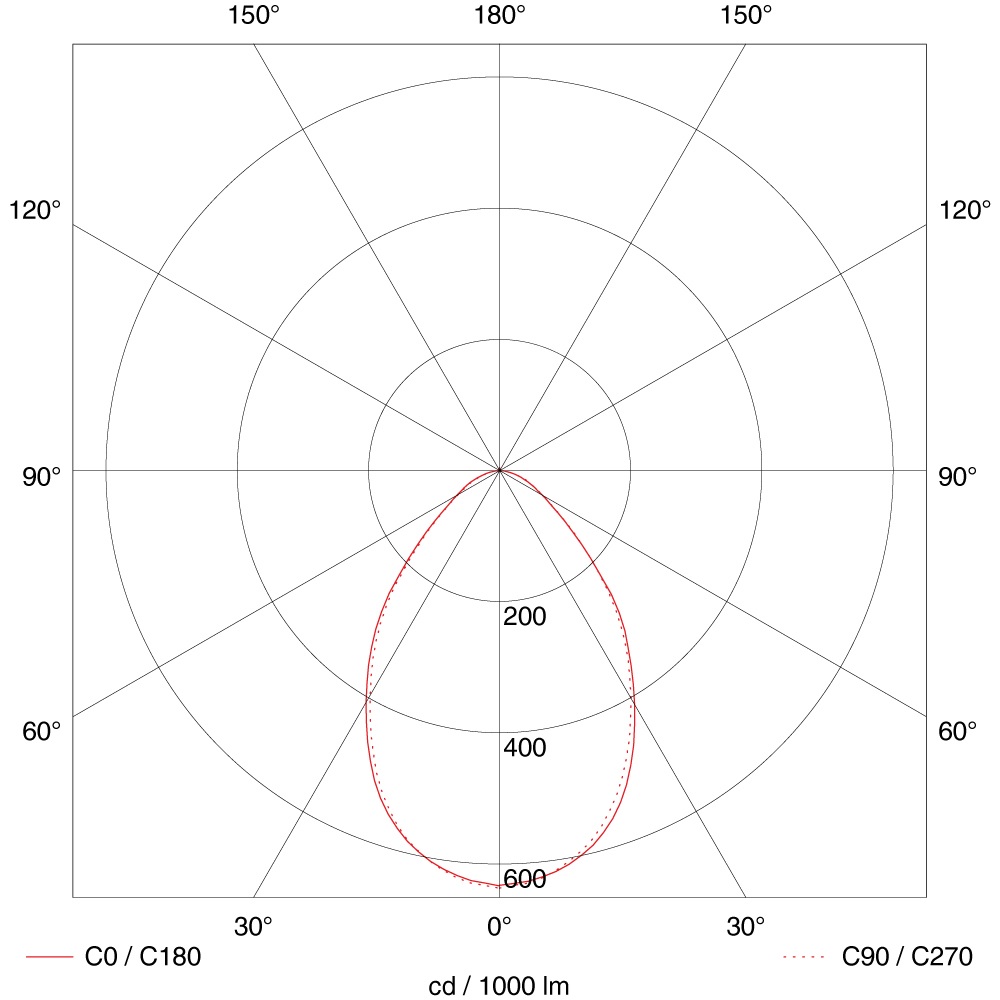

Polar Curve
Photometric Data
Order Code Description lm W lm/W L(mm) W(mm) D(mm)
ACA4200CS 17W - 3000K/4000K/5000K 2000 17 118 1200 120 60
ACA4200CSA3 17W - 3000K/4000K/5000K 2000 17 118 1200 120 60
ACA4200CSA3VB1 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSA3VB2 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSD 17W - 3000K/4000K/5000K 2000 17 118 1200 120 60
ACA4200CSD3 17W - 3000K/4000K/5000K 2000 17 118 1200 120 60
ACA4200CSD3VB2 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSDA3 17W - 3000K/4000K/5000K 2000 17 118 1200 120 60
ACA4200CSDA3VB3 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSDD3 17W - 3000K/4000K/5000K 2000 17 118 1200 120 60
ACA4200CSDD3VB3 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSDM3 17W - 3000K/4000K/5000K 2000 17 118 1200 120 60
ACA4200CSDM3VB3 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSDVB3 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSM3 17W - 3000K/4000K/5000K 2000 17 118 1200 120 60
ACA4200CSM3VB1 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSM3VB2 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSVB1 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA4200CSVB2 17W - 3000K/4000K/5000K 2000 17 118 1307 120 60
ACA5240CS 19W - 3000K/4000K/5000K 2300 19 121 1500 120 60
ACA5240CSA3 19W - 3000K/4000K/5000K 2300 19 121 1500 120 60
ACA5240CSA3VB1 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSA3VB2 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSD 19W - 3000K/4000K/5000K 2300 19 121 1500 120 60
ACA5240CSD3 19W - 3000K/4000K/5000K 2300 19 121 1500 120 60
ACA5240CSDA3 19W - 3000K/4000K/5000K 2300 19 121 1500 120 60
ACA5240CSDA3VB3 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSDD3 19W - 3000K/4000K/5000K 2300 19 121 1500 120 60
ACA5240CSDD3VB3 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSDM3 19W - 3000K/4000K/5000K 2300 19 121 1500 120 60
ACA5240CSDM3VB3 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSDVB3 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSM3 19W - 3000K/4000K/5000K 2300 19 121 1500 120 60
ACA5240CSM3VB1 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSM3VB2 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSVB1 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA5240CSVB2 19W - 3000K/4000K/5000K 2300 19 121 1607 120 60
ACA6290CS 25W - 3000K/4000K/5000K 3030 25 121 1800 120 60
ACA6290CSA3 25W - 3000K/4000K/5000K 3030 25 121 1800 120 60
ACA6290CSA3VB1 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSA3VB2 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSD 25W - 3000K/4000K/5000K 3030 25 121 1800 120 60
ACA6290CSD3 25W - 3000K/4000K/5000K 3030 25 121 1800 120 60
ACA6290CSDA3 25W - 3000K/4000K/5000K 3030 25 121 1800 120 60
ACA6290CSDA3VB3 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSDD3 25W - 3000K/4000K/5000K 3030 25 121 1800 120 60
ACA6290CSDD3VB3 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSDM3 25W - 3000K/4000K/5000K 3030 25 121 1800 120 60
ACA6290CSDM3VB3 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSDVB3 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSM3 25W - 3000K/4000K/5000K 3030 25 121 1800 120 60
ACA6290CSM3VB1 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSM3VB2 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSVB1 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA6290CSVB2 25W - 3000K/4000K/5000K 3030 25 121 1907 120 60
ACA4340CS 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSA3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSA3VB1 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSA3VB2 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSD 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSD3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSDA3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSDA3VB3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSDD3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSDD3VB3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSDM3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSDM3VB3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSDVB3 28W - 3000K/4000K/5000K 3400 28 121 1307 120 60
ACA4340CSM3 28W - 3000K/4000K/5000K 3400 28 121 1200 120 60
ACA4340CSM3VB1 28W - 3000K/4000K/5000K 3400 28 121 1307 120 60
ACA4340CSM3VB2 28W - 3000K/4000K/5000K 3400 28 121 1307 120 60
ACA4340CSVB1 28W - 3000K/4000K/5000K 3400 28 121 1307 120 60
ACA4340CSVB2 28W - 3000K/4000K/5000K 3400 28 121 1307 120 60
ACA5440CS 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSA3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSA3VB1 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSA3VB2 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSD 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSD3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSDA3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSDA3VB3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSDD3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSDD3VB3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSDM3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSDM3VB3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSDVB3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSM3 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSM3VB1 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSM3VB2 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSVB1 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA5440CSVB2 35W - 3000K/4000K/5000K 4300 35 123 1500 120 60
ACA6540CS 47W - 3000K/4000K/5000K 5580 47 119 1800 120 60
ACA6540CSA3 47W - 3000K/4000K/5000K 5580 47 119 1800 120 60
ACA6540CSA3VB1 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSA3VB2 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSD 47W - 3000K/4000K/5000K 5580 47 119 1800 120 60
ACA6540CSD3 47W - 3000K/4000K/5000K 5580 47 119 1800 120 60
ACA6540CSDA3 47W - 3000K/4000K/5000K 5580 47 119 1800 120 60
ACA6540CSDA3VB3 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSDD3 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSDD3VB3 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSDM3 47W - 3000K/4000K/5000K 5580 47 119 1800 120 60
ACA6540CSDM3VB3 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSDVB3 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSM3 47W - 3000K/4000K/5000K 5580 47 119 1800 120 60
ACA6540CSM3VB1 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSM3VB2 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSVB1 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
ACA6540CSVB2 47W - 3000K/4000K/5000K 5580 47 119 1907 120 60
